How Acrel Energy Meter Monitor Smart Home Battery Energy
How Acrel Energy Meter Monitor Smart Home Battery Energy
As residential energy storage systems (ESS) become the core solution for household energy conservation and consumption reduction, accurate and high-speed energy data sensing is crucial to optimizing charge-discharge strategies and improving household energy efficiency. Specifically designed for residential ESS scenarios, the Acrel AGF-AE-D/200 stands out with 100ms ultra-fast data acquisition and refresh rate, combined with precise bidirectional metering and 24/7 real-time monitoring capabilities. It serves as a core data supporting device for ESS solution providers, delivering millisecond-level high-precision data for household energy statistics and energy-saving strategy formulation, maximizing the energy-saving value of residential ESS.
Addressing the pain points of slow acquisition and data lag in traditional metering devices, the Acrel AGF-AE-D/200 achieves 100ms ultra-fast response for electrical parameter acquisition and refresh. It captures every energy flow change during household photovoltaic (PV) power generation, ESS charge-discharge, and grid power supply in milliseconds, accurately synchronizing core electrical parameters such as voltage, current, and forward/reverse power. Even at the moment of high-power household appliance startup/shutdown or PV output fluctuations, the device instantly captures data changes, truly reflecting the dynamic household energy consumption process. This enables ESS solution providers to accurately grasp household energy usage patterns, ensuring the scientificity and timeliness of energy-saving solutions from the data source, and completely avoiding energy waste caused by charge-discharge strategy deviations due to data lag.

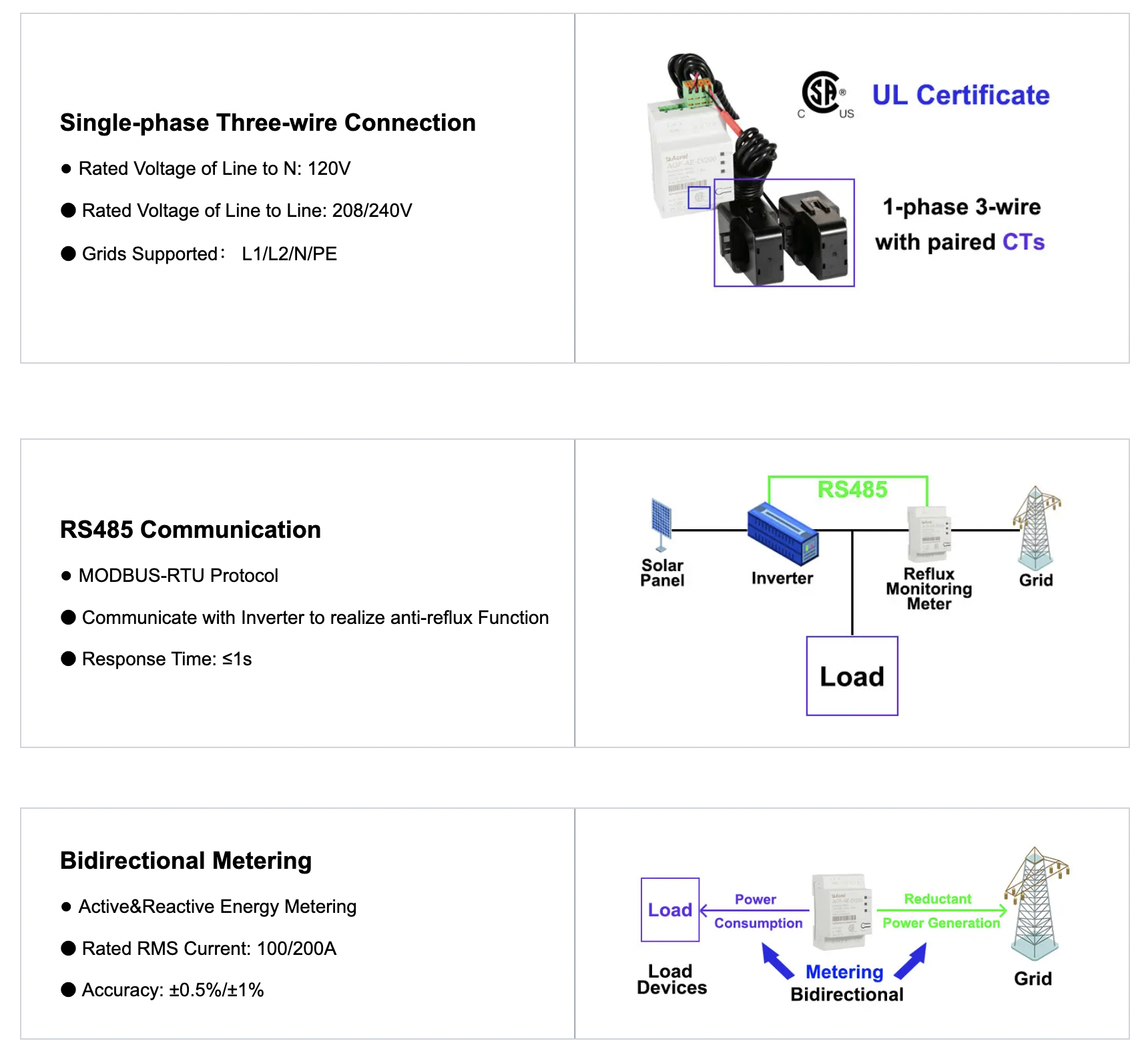

As the core metering unit of residential ESS, the AGF-AE-D/200 boasts Class 0.5S high-precision bidirectional metering with a rated current range of 200A. It clearly distinguishes between forward metering (grid-to-household power supply) and reverse metering (PV power generation and ESS discharge), fully covering all energy flow scenarios including PV self-consumption, ESS charge-discharge, and surplus power grid feed-in. With a metering error as low as ±0.5%, it far exceeds the standards of ordinary metering devices. Precise bidirectional metering data allows ESS solution providers to accurately calculate household PV self-consumption rate, ESS charge-discharge cycle efficiency, quantitatively analyze the proportion of grid power purchase and PV energy-saving benefits, and customize personalized peak-shaving and valley-filling strategies for households—activating ESS discharge during peak electricity consumption periods and charging with low-cost grid electricity during off-peak periods. This precisely controls the charge-discharge rhythm, effectively reduces household electricity costs, and makes energy-saving effects quantifiable and traceable.
Supported by 24/7 real-time monitoring, the AGF-AE-D/200 provides uninterrupted monitoring of household energy consumption status. Equipped with dual communication interfaces (Ethernet + RS485) and compatible with mainstream protocols such as Modbus and Sunspec, it seamlessly uploads 100ms ultra-fast acquired energy data to the residential ESS energy management system, enabling remote visual monitoring of energy data. ESS solution providers can view household energy consumption data across different time periods and scenarios in real time through the management platform, quickly identifying high-energy-consumption periods and high-power devices, and putting forward targeted energy-saving optimization suggestions. Meanwhile, the device can real-time monitor voltage and current abnormalities, triggering system alarms for overvoltage, undervoltage, overcurrent and other risks—preventing energy waste caused by equipment malfunctions and ensuring the safe and efficient operation of the ESS to safeguard household energy conservation.
For ESS solution providers, the AGF-AE-D/200 is more than a high-precision metering device; it is an efficient household energy statistics tool that significantly improves energy analysis and solution formulation efficiency. With dual international certifications (UL2735, CE), it is compatible with grid standards in North America, Europe and other regions, meeting compliance requirements for residential ESS projects worldwide. Adopting 35mm standard DIN rail mounting, it features a compact design and simple wiring, enabling quick integration into various ESS solutions and reducing project implementation costs. In terms of energy statistics, the device automatically stores historical energy data, supporting classified statistics and export by day, week, month, and year. Providers can directly retrieve standardized, high-precision energy data without additional manual statistics, quickly completing household energy analysis reports and customizing targeted energy-saving solutions. This not only enhances service professionalism and efficiency but also provides accurate data support for the optimization and upgrading of ESS solutions.
Furthermore, the AGF-AE-D/200 boasts industrial-grade reliability, with a wide operating temperature range (-25℃~+55℃) and IP52 protection rating. It can adapt to harsh operating environments such as household distribution boxes and outdoor ESS cabinets, maintaining stable performance even under extreme temperature fluctuations. By integrating ultra-fast data acquisition, precise metering, and real-time monitoring, the Acrel AGF-AE-D/200 bridges the full link of "data acquisition - metering statistics - strategy formulation" for household energy-saving management, becoming a core data sensing node for residential ESS solutions. It empowers providers to achieve refined and intelligent control of household energy consumption, fully exerting the energy-saving value of PV and ESS systems—helping households reduce electricity costs and achieve green energy use, while driving the residential ESS industry towards a more efficient and energy-saving future.
