Bi-Direction Energy Measurement
● For grids import and solar export metering
● For ESS charge&discharge metering
● Forward&backward metering
1

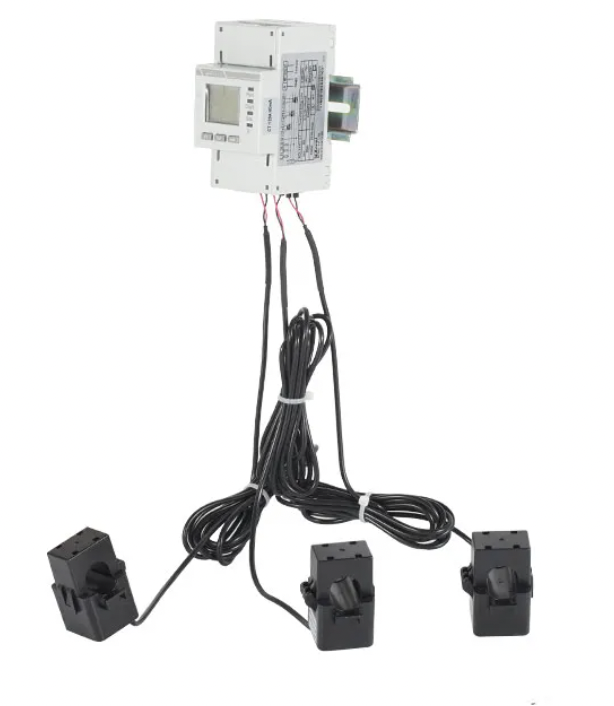

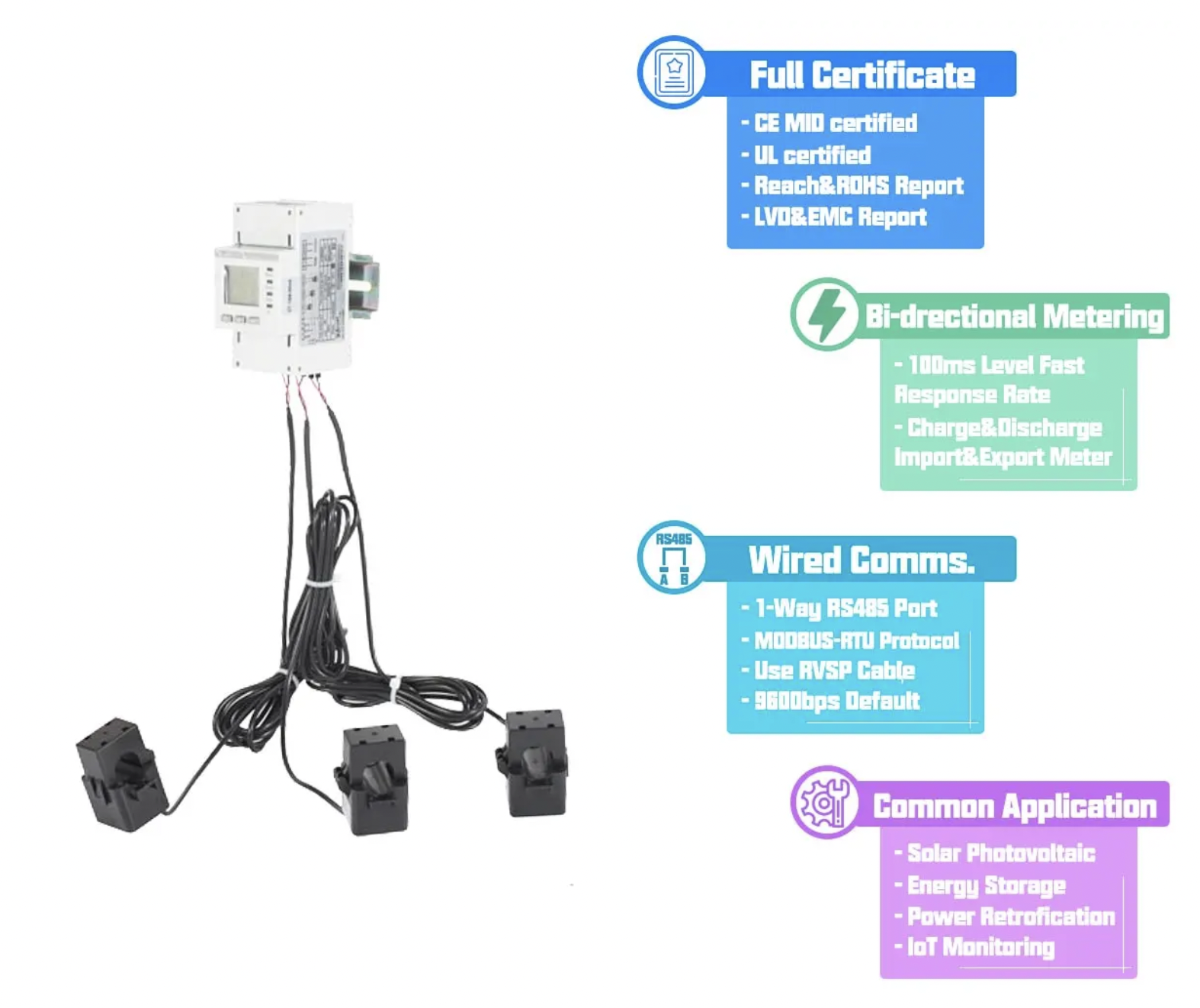

ADL400N-CT Three Phase Four Wire Split Core CT Meter
ADL400N-CT Three Phase Four Wire Split Core CT Meter
● Measurement: 3-phase or split-phase bi-directional AC Energy (kWh), Power, Current, Voltage and etc
● Accuracy: 1.0
● Frequency: 45~65Hz
● Rated Voltage: 110~277Vac L-N; 190~480Vac L-L (direct connect)
● Rated Current: Optional 80A, 120A, 200A, 300A AC (via paired CT)
● Communication: RS485 (MODBUS-RTU)
● Response Time: 100ms (current, voltage, power); 1.0s (energy)
● Installation: 35mm DIN Rail
● Standard&Certificate: CE; MID; UL
-
ADL200N_ADL400N UL.pdf
-
RoHS10 ADL 400N ADL 200N.pdf
-
Energy Meter ADL200N-CT ADL400N-CT UL CSA 报告80188894 Report.pdf
Introduction
The ADL400N-CT is a rail-mounted multifunctional energy meter designed by Acrel Electric specifically for new energy power generation systems such as photovoltaic grid-connection, micro-inverters, energy storage, and AC coupling. Its core advantages lie in high-precision measurement, rapid response, and intelligent control, serving as a key component for energy management in residential and small industrial/commercial new energy systems.
General
-

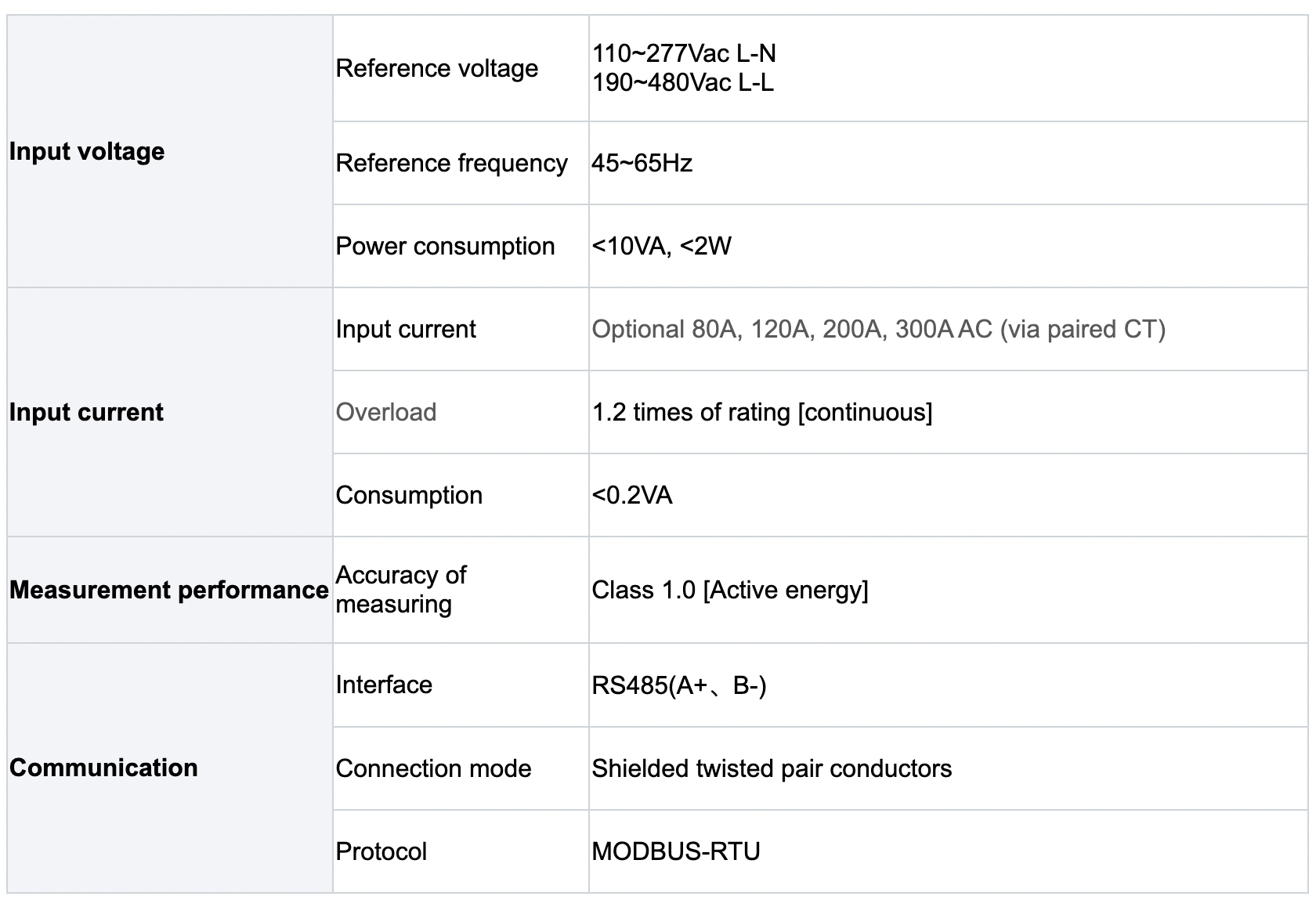

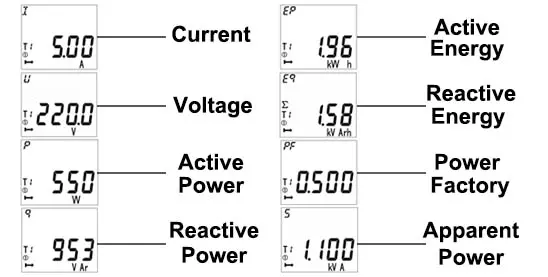

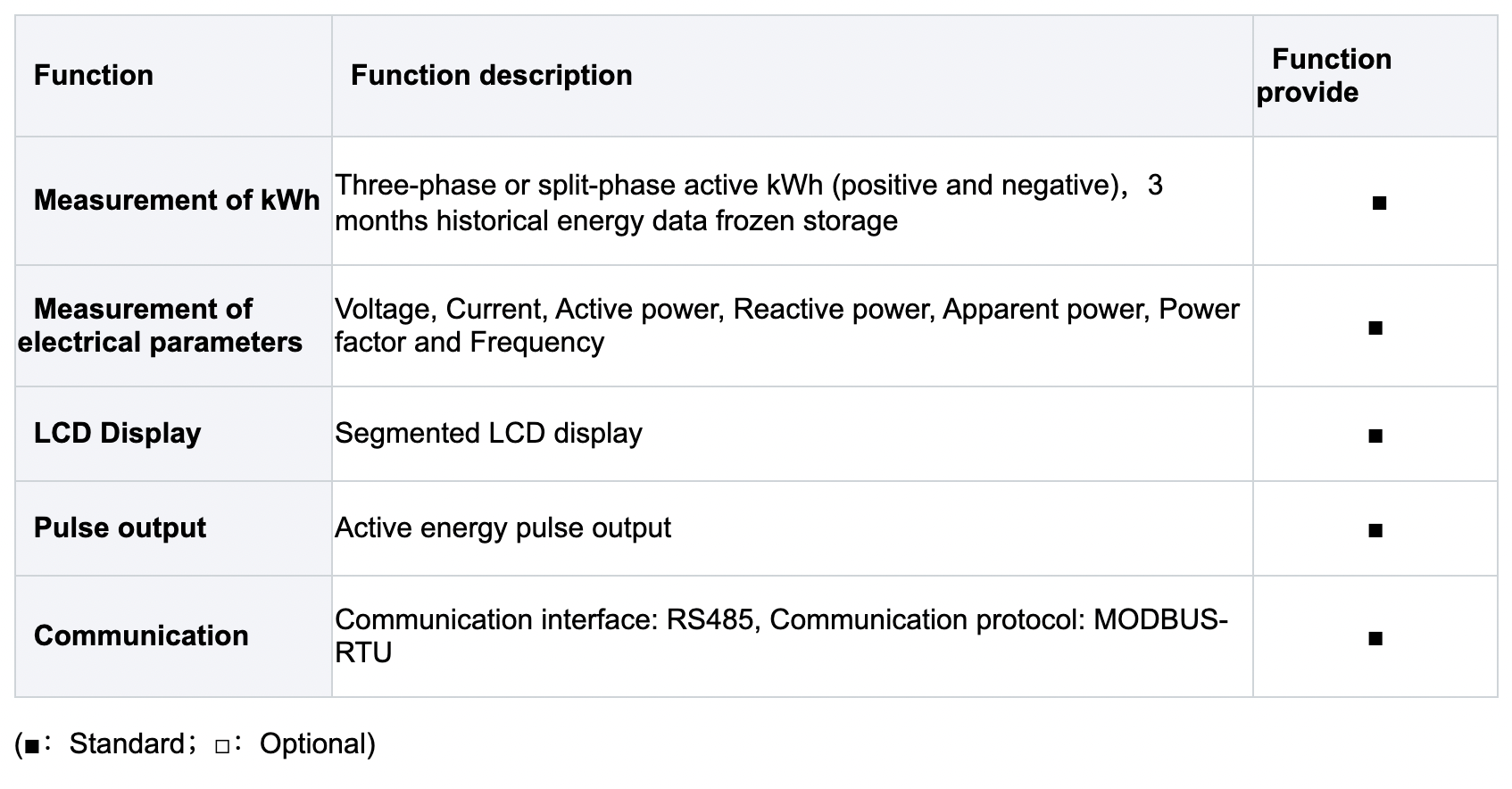

Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)2

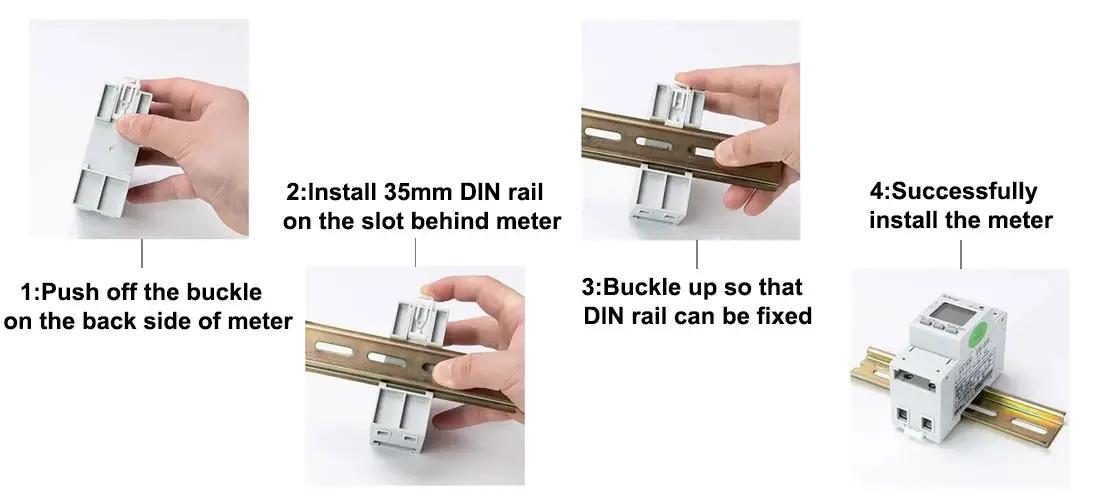

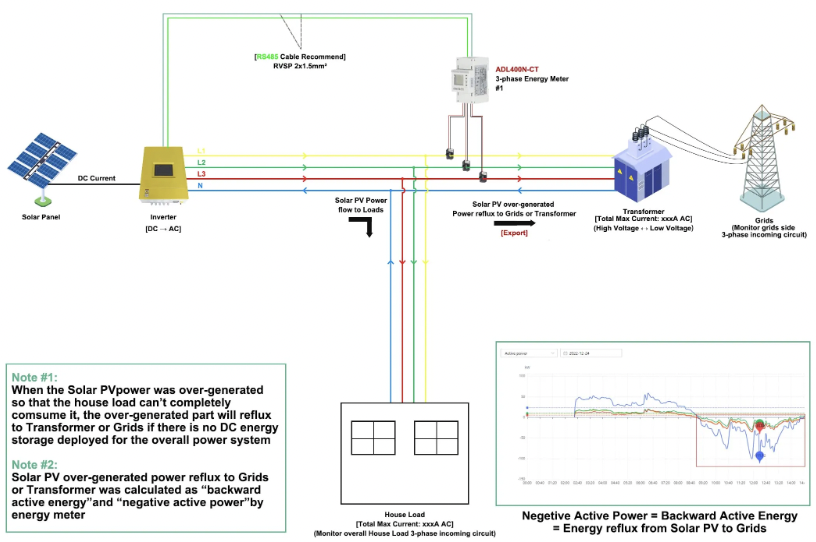

Installation

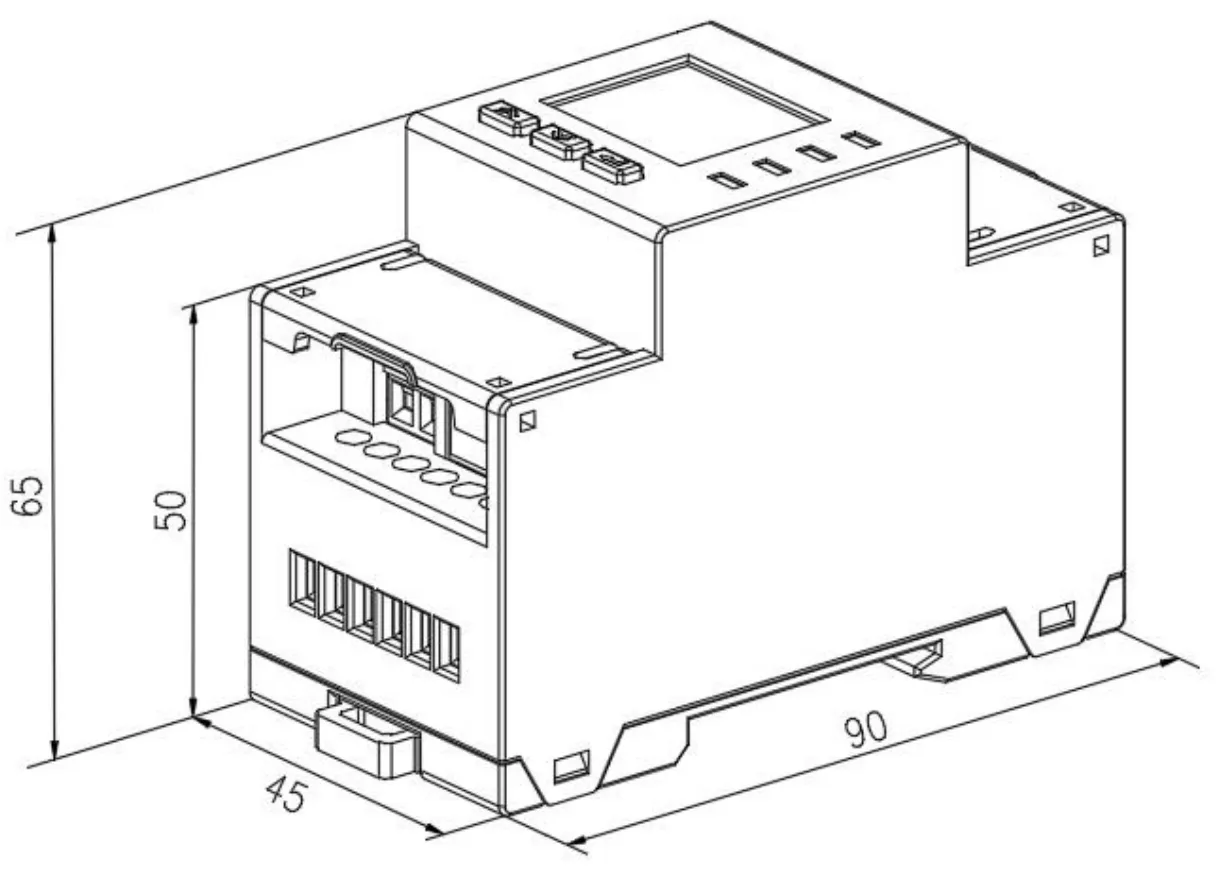

Dimension&Packagement

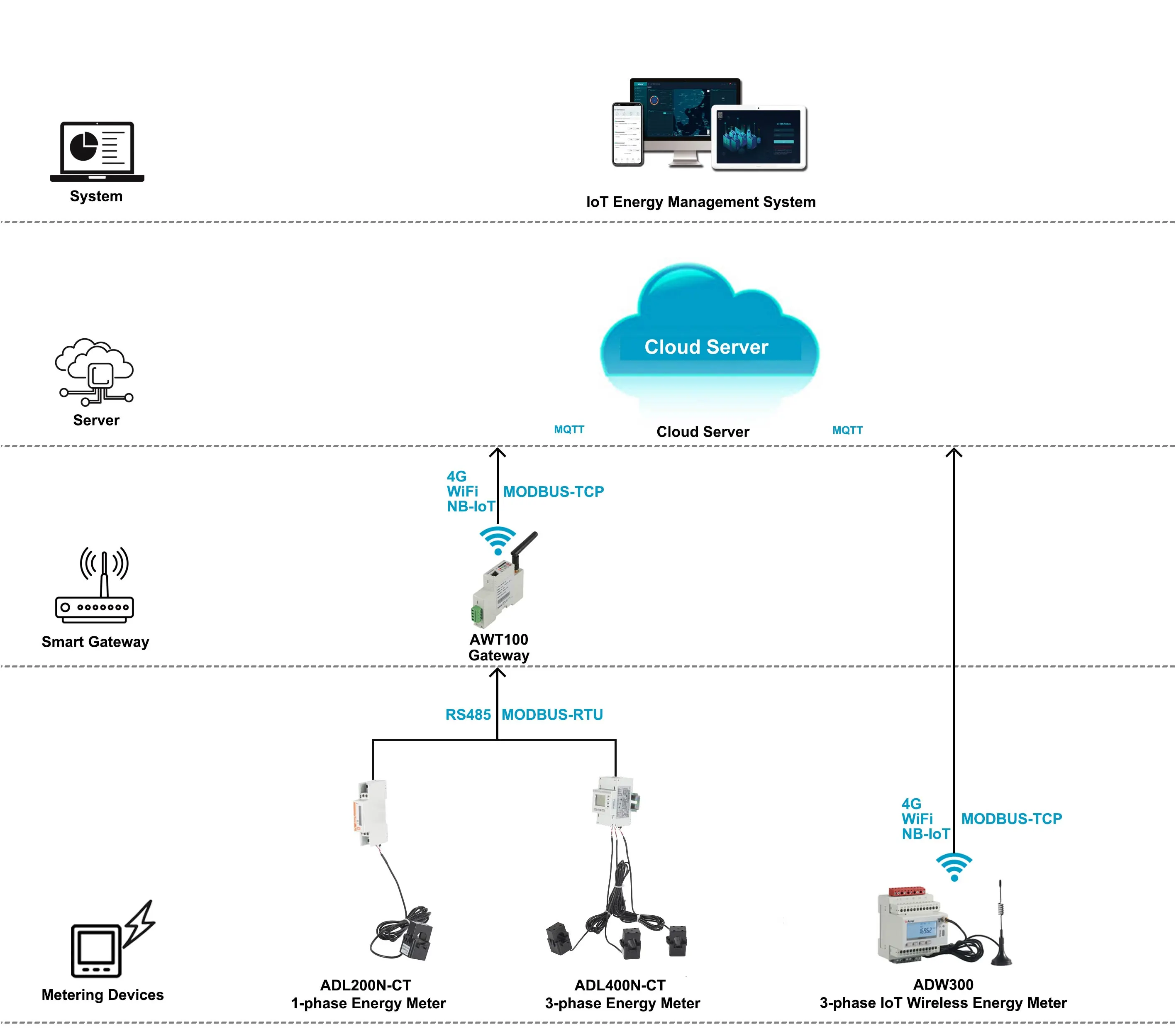

Application in IoT System
