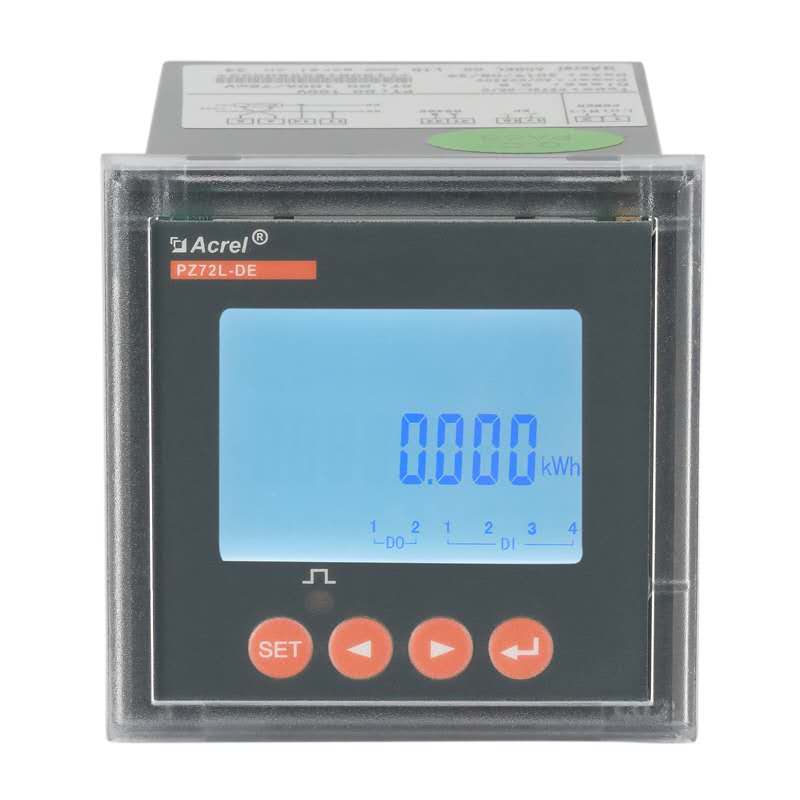

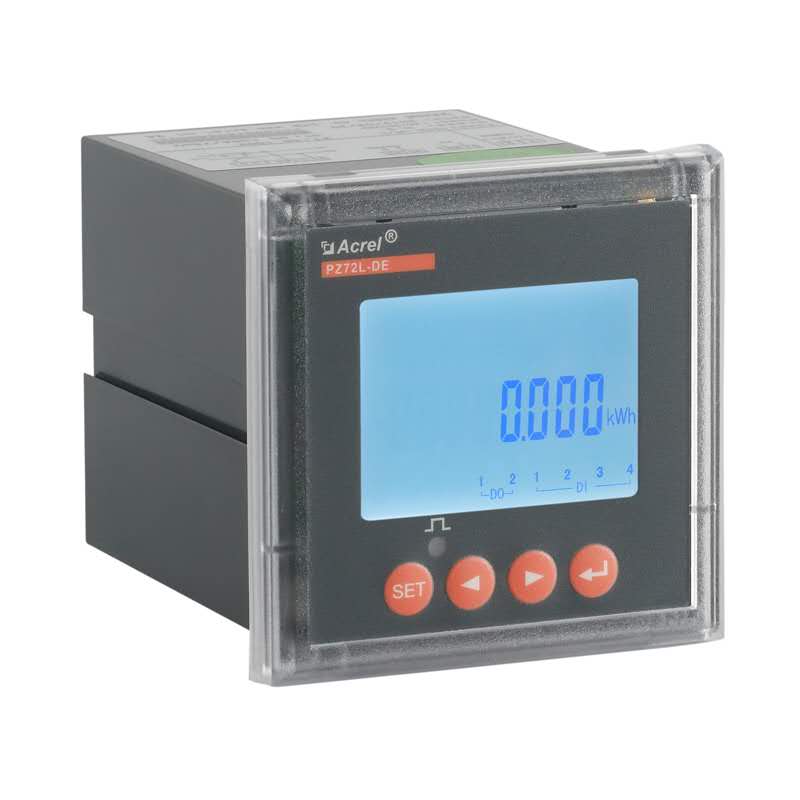

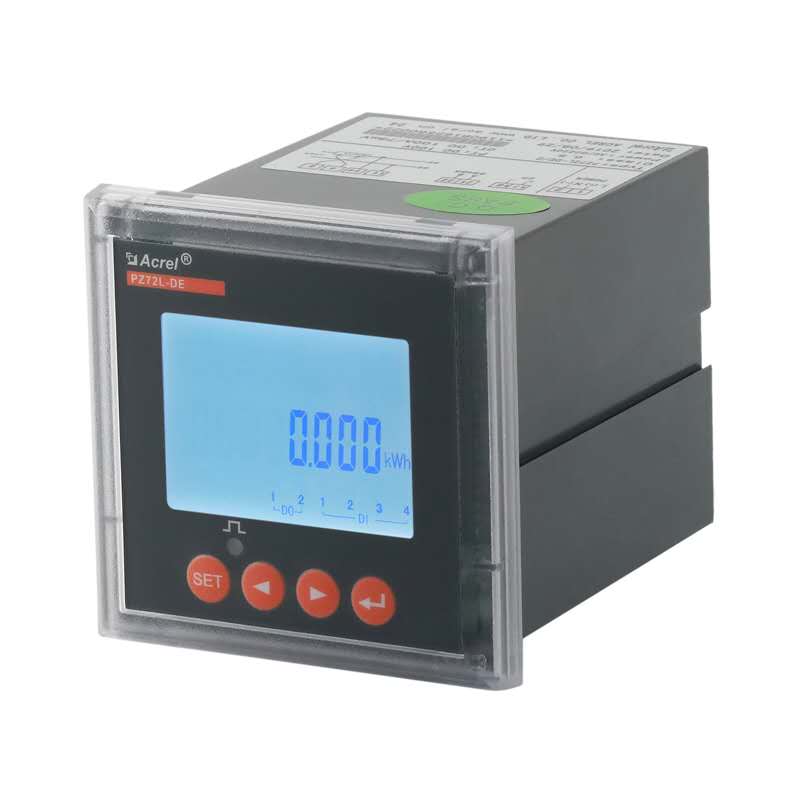

Acrel PZ72(L)-DE Smart DC Energy Meter with Rs485(Modbus-Rtu)
Acrel PZ72(L)-DE Smart DC Energy Meter with Rs485(Modbus-Rtu)
●Rated voltage:DC0~1000V(customized)
●Rated current:0~20mA,4~20mA,0~5V,0~4V via hall sensor
●Rated current:0~75mV via shunt
●Measure voltage, current, power, power consumption in DC system
●RS485(MODBUS-RTU)
●DI/DO, Relay alarm output
●Applications:DC panels, solar power, tele base stations, and charging pile
- WhatsApp: 8613482177205
- Skype: Charles@acrel
- E-mail: Charles@acrel.cn
-
Manual of Pz72L-DE.pdf
-
CE of PZ series DC meter.pdf
PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power, forward and reverse power in DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system.
Characteristics
- Measure voltage, current, power, forward and reverse power in DC system

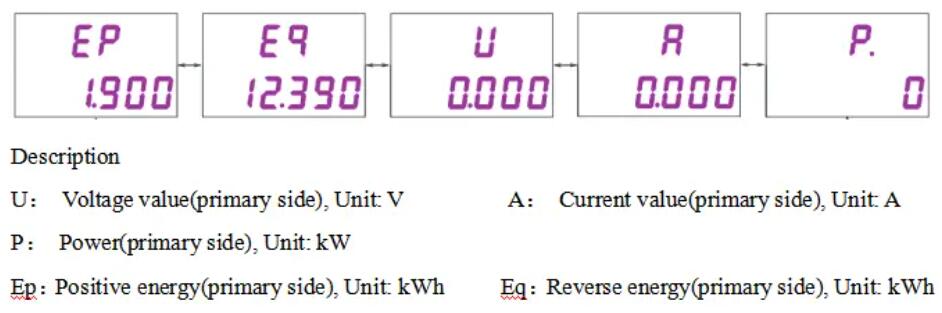

- LCD display
- RS485(MODBUS-RTU)
- DI/DO, Relay alarm output
- Applications:DC panels, solar power, telecommunications base stations, and charging posts
Function
-
Adopt high flame-retardant shellAdopt high flame-retardant shell
-
Bi-directional energy measurement
-
Voltage up to 1000V
-
current can be connected with hall sensor,shunt.
Product Size
Connection Mode
Details
Network Diagram
Type and Function
Type and Function
