AMC16Z-FAK48 Multi Circuit Power Meter
AMC16Z-FAK48 Multi Circuit Power Meter
● Designed specifically for the power supply management of server in the data center
● A+B independent 24 circuits（48 in total）
● U, I, P, Q, S, PF, kWh, kvarh
● 2nd-31st Harmonic
● kWh Class 0.5
● DIN 35 mm
- WhatsApp: 8613482177205
- Skype: Charles@acrel
- E-mail: Charles@acrel.cn
-
AMC-FAK48.pdf
Characteristic
- Communication: RS485 (Modbus-RTU)
- Multi-circuit power meter: A+B independent 24 circuits (48 in total), DC12V output
- Rated U and I: AC 220V/380V
Functions
Appearance
Dimension
Wiring
Typical Connection
Recommended Products

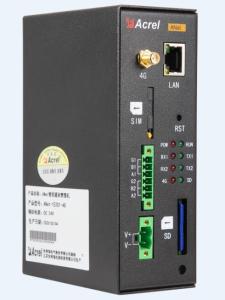

ARTU-KJ8
AMC16Z-ZA
AMC16MA
|
AMC16Z-FAK24 |
AMC16Z-FAK48 |
||
|
Measurement parameters |
Voltage, current, frequency, active power, reactive power, power factor, active power, reactive power, switching state |
||
|
2-31 times harmonics |
|||
|
Bus voltage |
Rated |
220VAC |
|
|
Measurement range |
±20% |
||
|
Overload |
Instantaneous voltage 2 times/second |
||
|
Current outgoing line loop |
Rated |
50mA |
|
|
Range |
0.125~60mA |
||
|
Overload |
Duration 1.2 times, instantaneous 10 times/second ·
|
||
|
Input frequency |
45~60Hz |
||
|
Measurement accuracy |
Outgoing line |
Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1 |
|
|
Auxiliary power supply |
Power supply by AMC16Z-ZA |
||
|
Environment |
Temperature |
Working:-15℃~55℃ Storage:-25℃~70℃ |
|
|
Humidity |
Relative humidity |
||
|
Altitude |
≤2500m |
||
|
Communication |
RS485/Modbus-RTU |
||
|
Installation method |
DIN35mm Guide rail or bottom plate mounting ·
|
||
|
IP grade |
IP20 |
||
|
Class of pollution |
2 |
||
|
Safety |
Insulation |
All terminals and the insulation resistance between the conductive pieces not below 100 m Ω |
|
|
Withstand voltage |
A-channel voltage and current signal // B-channel voltage and current signal // other ports meet AC2kV 1min between pairs, leakage current should be less than 2mA, no breakdown or flashover phenomenon. |
||
|
Electromagnetic compatibility |
Anti static interference |
||
|
Resistance to radiation of radiofrequency electromagnetic field |
Level 3 |
||
