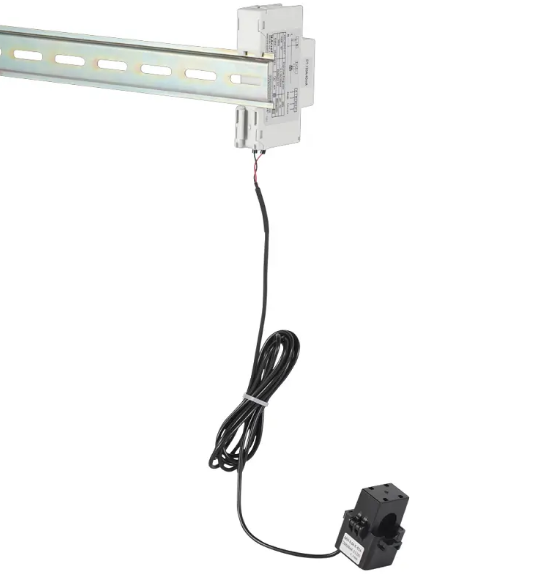

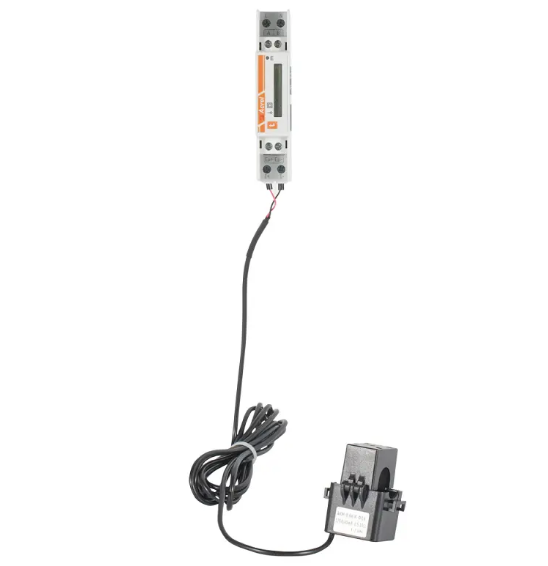

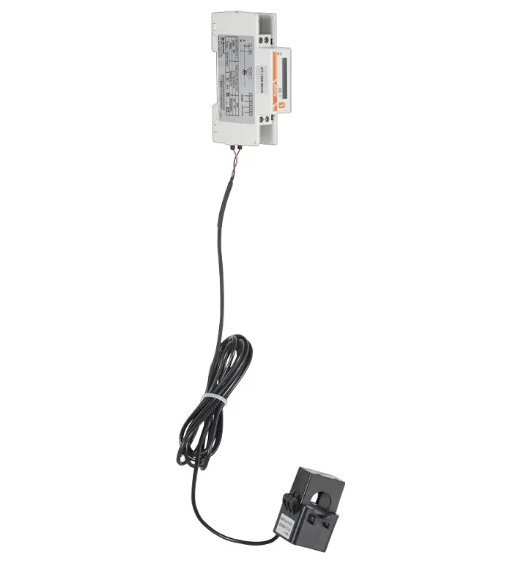

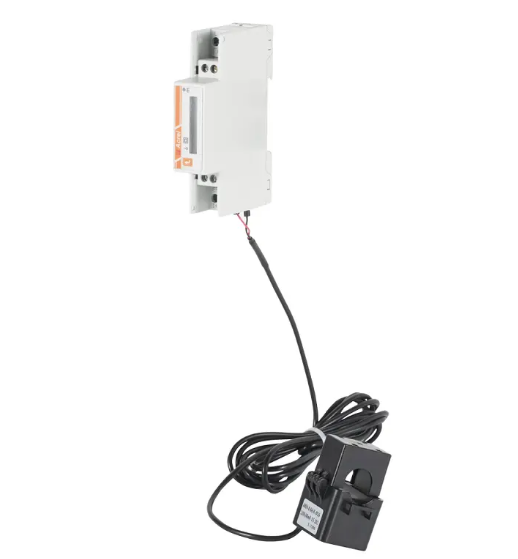

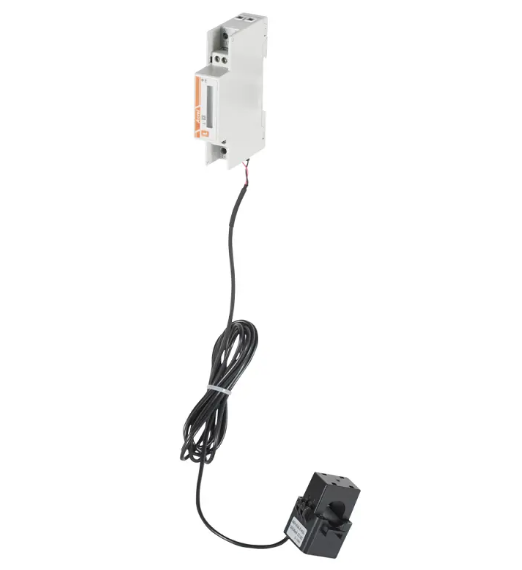

ADL200N-CT Single Phase Two Wire Split Core CT Meter
ADL200N-CT Single Phase Two Wire Split Core CT Meter
<p>
<span style="font-size:16px;"></span>
</p>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, " font-size:14px;line-height:2;"=""> <span style="font-size:16px;color:#000000;font-family:arial, helvetica, sans-serif;"><span style="color:#00D5FF;">
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="color:#000000;"><span style="font-size:16px;"><span style="font-family:arial, helvetica, sans-serif;"><span style="color:#00D5FF;">● </span><strong><span style="color:#00D5FF;">Measurement:</span> </strong>1-phase bi-directional AC Energy (kWh), Power, Current, Voltage and etc</span></span></span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="color:#000000;"><span style="font-size:16px;"><span style="font-family:arial, helvetica, sans-serif;"><span style="color:#00D5FF;">● </span><strong><span style="color:#00D5FF;">Accuracy:</span><span style="color:#00D5FF;"> </span></strong>1.0</span></span></span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="color:#000000;"><span style="font-size:16px;"><span style="font-family:arial, helvetica, sans-serif;"><span style="color:#00D5FF;">● </span><strong><span style="color:#00D5FF;">Frequency: </span></strong>45~65Hz</span></span></span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="color:#000000;"><span style="font-size:16px;"><span style="font-family:arial, helvetica, sans-serif;"><span style="color:#00D5FF;">● </span><strong><span style="color:#00D5FF;">Rated Voltage:</span> </strong>110~240Vac (direct connect)</span></span></span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="color:#000000;"><span style="font-size:16px;color:#00D5FF;"><span style="font-family:arial, helvetica, sans-serif;color:#00D5FF;">● </span></span><span style="font-family:arial, helvetica, sans-serif;font-size:16px;"><strong><span style="color:#00D5FF;">Rated Current:</span></strong> Optional 80A, 120A, 200A, 300A AC (via paired CT)</span></span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="font-family:arial, helvetica, sans-serif;font-size:16px;color:#000000;"><span style="color:#00D5FF;">● </span><strong><span style="color:#00D5FF;">Communication:</span></strong><span style="color:#00D5FF;"> </span>RS485 (MODBUS-RTU)</span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="font-family:arial, helvetica, sans-serif;font-size:16px;color:#000000;"><span style="color:#00D5FF;">● </span><strong><span style="color:#00D5FF;">Response Time:</span></strong><span style="color:#00D5FF;"> </span>100ms (current, voltage, power); 1.0s (energy)</span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="font-family:arial, helvetica, sans-serif;font-size:16px;color:#000000;"><span style="color:#00D5FF;">● </span><strong><span style="color:#00D5FF;">Installation:</span> </strong>35mm DIN Rail</span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, "font-size:14px;line-height:2;">
<span style="font-family:arial, helvetica, sans-serif;font-size:16px;color:#000000;"><span style="color:#00D5FF;">●</span><strong><span style="color:#00D5FF;"> Standard&Certificate:</span></strong><span style="color:#00D5FF;"> </span>CE; MID; UL</span>
</div>
</span></span>
</div>
<div style="color:rgba(0, 0, 0, 0.65);font-family:-apple-system, " font-size:14px;line-height:2;"=""><span style="font-size:16px;color:#000000;font-family:arial, helvetica, sans-serif;"><span style="color:#00D5FF;"></span><strong><span style="color:#00D5FF;"></span></strong></span>
</div>
<p>
<br />
</p>
<p>
<span style="font-size:16px;"></span>
</p>
<p>
<br />
</p>
-
T261 ADL Din Rail Meter T1.0(UL) (241205) .pdf
-
ADL200N_ADL400N UL.pdf
-
RoHS10 ADL 400N ADL 200N.pdf
-
ADL200N-CT CE-EMC 证书.pdf
-
ADL200N-CT CE-LVD 证书.pdf
<p>
<br />
</p>
<div class="entm-field_editor" style="text-align:center;color:#FFFFFF;background:#009BE3;padding:15px;font-size:21px;">
<strong>Introduction</strong>
</div>
<div class="entm-row_wrap entm-type_imageText" style="padding-bottom:10px;">
<div class="ent-imageText ent-clearfix">
<div class="ent-left entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e9515bbd9a.jpg" alt="" />
</div>
<div class="entm-field_editor">
<p>
<span style="line-height: 2; font-size: 18px;" font-size:18px;"=""><span style="color:rgba(0, 0, 0, 0.85);font-family:Inter, -apple-system, "font-size:16px;background-color:#FFFFFF;">The ADL200N-CT is a rail-mounted multifunctional energy meter designed by Acrel Electric specifically for new energy power generation systems such as photovoltaic grid-connection, micro-inverters, energy storage, and AC coupling. Its core advantages lie in high-precision measurement, rapid response, and intelligent control, serving as a key component for energy management in residential and small industrial/commercial new energy systems</span>.</span>
</p>
</div>
</div>
</div>
<p>
<br />
</p>
<p>
<br />
</p>
<div class="entm-field_editor" style="text-align:center;color:#FFFFFF;background:#009BE3;padding:15px;font-size:21px;">
<strong>General</strong><br />
</div>
<p>
<br />
</p>
<p>
<br />
</p>
<div class="entm-row_wrap entm-type_img" style="padding-bottom:10px;">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e9219d0b39.png" alt="" />
</div>
</div>
<div class="entm-row_wrap entm-type_divider" style="padding:10px 0;">
<div class="entm-field_divider" style="height:0;border-top:1px solid #ddd;">
</div>
</div>
<div class="entm-row_wrap entm-type_gallerySmart">
<div class="enter_chart_content30">
<div class="clearfix">
<div class="col-6">
<ul class="plr-16 entm-sort-private gallerySmart ui-sortable">
<li class="marg-lg-b30 steps entm-row_wrap entm-type_galleryItem">
<div class="step">
<div class="step__title entm-field_title entm-field_color_font">
<br />
High Response Time Designed For PV System
</div>
<p class="step__content entm-field_text">
<br />
<strong>● 1-channel RS485 to communicate with inveter<br />
● 100ms fast response time (voltage, current, power)<br />
● Bidirectional metering</strong>
</p>
<div class="step__number entm-field_title">
1
</div>
</div>
</li>
</ul>
</div>
<div class="col-6 alignnone_img entm-row_wrap entm-type_galleryItem">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e953b2aac9.png" alt="" />
</div>
</div>
</div>
</div>
</div>
<div class="entm-row_wrap entm-type_divider" style="padding:10px 0;">
<div class="entm-field_divider" style="height:0;border-top:1px solid #ddd;">
</div>
</div>
<div class="entm-row_wrap entm-type_gallerySmart">
<div class="enter_chart_content30">
<div class="clearfix">
<div class="col-6">
<ul class="plr-16 entm-sort-private gallerySmart ui-sortable">
<li class="marg-lg-b30 steps entm-row_wrap entm-type_galleryItem">
<div class="step">
<div class="step__title entm-field_title entm-field_color_font">
<br />
Bi-Direction Energy Measurement
</div>
<p class="step__content entm-field_text">
<br />
<strong>● For grids import and solar export metering<br />
● For ESS charge&discharge metering<br />
● Forward&backward metering<br />
<br />
</strong>
</p>
<div class="step__number entm-field_title">
2
</div>
</div>
</li>
</ul>
</div>
<div class="col-6 alignnone_img entm-row_wrap entm-type_galleryItem">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e9313bbf9d.png" alt="" />
</div>
</div>
</div>
</div>
</div>
<div class="entm-row_wrap entm-type_gallerySmart">
<div class="enter_chart_content30">
<div class="clearfix">
<div class="col-6">
<ul class="plr-16 entm-sort-private gallerySmart ui-sortable">
<li class="marg-lg-b30 steps entm-row_wrap entm-type_galleryItem">
<div class="step">
<div class="step__title entm-field_title entm-field_color_font">
<br />
Electricity Parameters Measurement
</div>
<p class="step__content entm-field_text">
<br />
<strong>● U (Voltage)<br />
● I (Current)<br />
● P (Power)<br />
● Q (Reactive power)<br />
● S (Apparent power)<br />
● PF (Power factor)<br />
● kWh (Kilowatt-hours)<br />
● kVarh (Kilovar-hours)</strong>
</p>
<div class="step__number entm-field_title">
3
</div>
</div>
</li>
</ul>
</div>
<div class="col-6 alignnone_img entm-row_wrap entm-type_galleryItem">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e9600df225.png" alt="" />
</div>
</div>
</div>
</div>
</div>
<div class="entm-row_wrap entm-type_divider" style="padding:10px 0;">
<div class="entm-field_divider" style="height:0;border-top:1px solid #ddd;">
</div>
</div>
<p style="text-align:center;">
<br />
</p>
<div class="entm-field_editor" style="text-align:center;color:#FFFFFF;background:#009BE3;padding:15px;font-size:21px;">
<strong>Installation</strong>
</div>
<div class="entm-row_wrap entm-type_img" style="padding-bottom:10px;">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e9622b9b0c.png" alt="" />
</div>
</div>
<div class="entm-field_editor" style="text-align:center;color:#FFFFFF;background:#009BE3;padding:15px;font-size:21px;">
<strong>Wiring Dia</strong><strong>gram</strong>
</div>
<p>
<br />
</p>
<p>
<img src="//resourcewebsite.singoo.cc/attachment/692e966980606.png" alt="" />
</p>
<p>
<br />
</p>
<p>
<br />
</p>
<p>
<br />
</p>
<div class="entm-field_editor" style="text-align:center;color:#FFFFFF;background:#009BE3;padding:15px;font-size:21px;">
<strong><span style="box-sizing:border-box;font-family:tahoma, arial, helvetica, sans-serif;">Application in IoT System</span></strong><br />
</div>
<div class="entm-row_wrap entm-type_img" style="padding-bottom:10px;">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e97da49c01.png" alt="" />
</div>
</div>
<p>
<br />
</p>
<br />
<div class="entm-row_wrap entm-type_img" style="padding-bottom:10px;">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e98792ce64.png" alt="" />
</div>
</div>
<div class="entm-row_wrap entm-type_img" style="padding-bottom:10px;">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e988c26f05.png" alt="" />
</div>
</div>
<div class="entm-row_wrap entm-type_img" style="padding-bottom:10px;">
<div class="entm-field_img">
<img src="//resourcewebsite.singoo.cc/attachment/692e9893c63fa.png" alt="" />
</div>
</div>
