ADF400L: Change Sub Module Connection Number

1. today, this is manual will teach you how to change ADF400L-2H to ADF400L-4H. This is just a sample, the setting number for H, S, D, need to follow your real connection.

2. press ‘set’ to enter password page.

3. press ‘enter’ to enter password, password is 0001

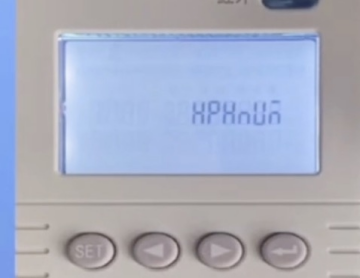

4. press ‘right’ to select HPHNUN page, press ‘enter’ to enter

5. press ‘right’ to change you ADF400L-xH, like this time, we change to 04, means ADF400L-4H, press ‘enter’ to confirm.

6. press ‘right’ to select SPHNUM page, press ‘enter’ to enter. Change the num to 0. press ’enter’ to confirm

7. press ‘right’ to select DPHNUM page, press ‘enter’ to enter. Change the num to 0. press ’enter’ to confirm

8. press ‘right’ to select DBUGPASS page, press ‘enter’, enter ‘6606’, press ‘enter’ to confirm.

9. press ‘set’ to return saving page, press ‘enter’, press ‘right’ to select Yes, press ‘enter’ to save.
