Characteristics
- Communication：RS485 (Modbus-RTU)
- Display：4 digitals LED display
- Rated U and I：AC380/660V, rated current up to 800A
ARD2-1 Smart Motor Protector
ARD2-1 Smart Motor Protector
● Suitable for motors with rated voltage of AC380V/660V;
● Optional leakage protection, RS485 communication, analog output, etc.
● 2 channels DI passive dry node input, signal power supply with built-in DC24V power supply;
● 4 channels DO output.
- WhatsApp: 8613482177205
- Skype: Charles@acrel
- E-mail: Charles@acrel.cn
-
Manual of ARD2.pdf
-
CE of ARD2.pdf

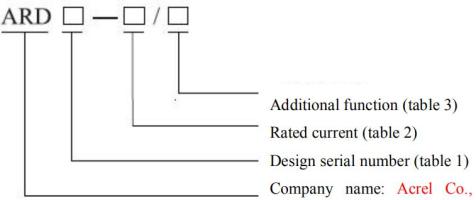

Function
Accuracy
Active energy: Class 0.5
Frequency
Range: 45-65Hz
Auxiliary power supply
AC/DC 85~265V
Pulse output
1600-160000imp/kWh
Consumption
Voltage: Power consumption <0.5VA;
Current: Power consumption< 0.5VA;
Auxiliary power supply:power consumption≤10VA
Installation：
Panel mounted
96mm*78.5mm*48mm
Wiring
Typical Connection
