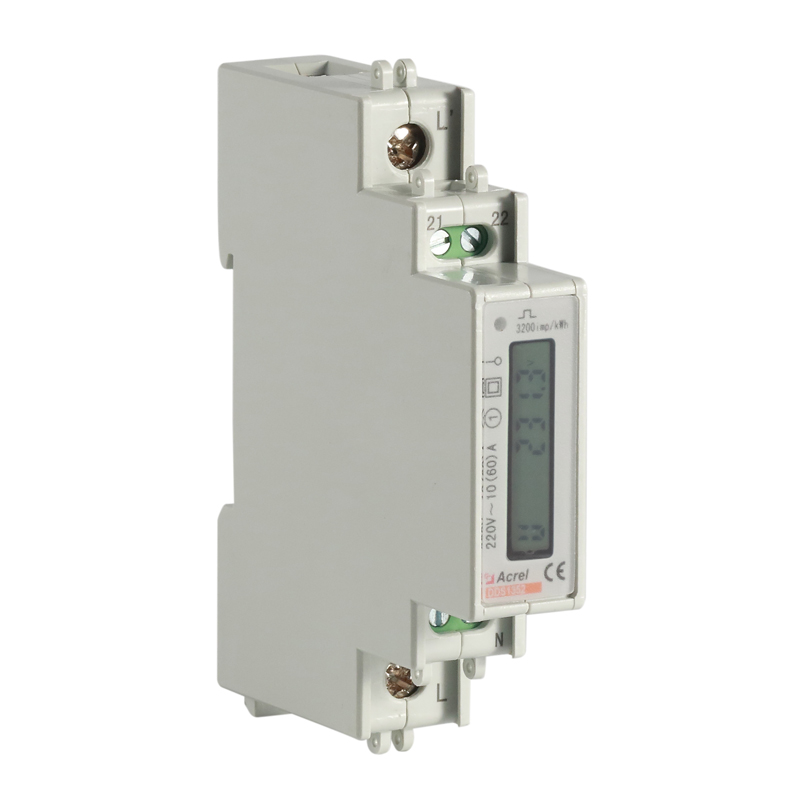

ADL200 AC Single Phase Energy Meter(MID)
ADL200 AC Single Phase Energy Meter(MID)
● Monitoring: kWh, kVarh, Power, Current, Voltage and etc
● Rate Voltage: AC220V
● Rate Current: 10(80)A Direct Connect
● Frequency: 45~65Hz
● Communication: RS485(MODBUS-RTU)
● Display: LCD display
● Accuracy: kWh Class 1
● Installation: Din Rail (35mm)
● Certificate: CE, IEC, MID
-
Manual of ADL200.pdf
-
CE of ADL200.pdf
-
MID ceritificate of ADL200 .pdf
Function
Appearance
Wiring
Dimension
Installation
LCD Display
Application
|
Voltage |
Rated voltage |
AC 220~240V |
|
|
Rated frequency |
50~60Hz |
||
|
Consumption |
<10VA |
||
|
Current |
Maximum current |
80A |
|
|
Starting current |
0.01A |
||
|
Consumption |
<1VA |
||
|
Measurement performance |
Accuracy |
kWh Class 0.5 |
|
|
Range |
0~9999999999.99kWh |
||
|
Clock |
Accuracy |
error≤0.5s/d |
|
|
Active pulse |
Width |
80±20ms |
|
|
Constant |
1000imp/kWh,10000imp/kWh |
||
|
Communication |
Interface |
RS485 |
|
|
Protocol |
Mod bus-RTU |
||
|
Temperature range |
Work |
-25℃~55℃ |
|
|
Storage |
-40℃~70℃ |
||
|
Humidity |
≤95%(No condensation) |
||
|
Altitude |
<2000m |
||
