ANAPF Active Power Filter
● 380V±15%,50Hz±2%


● Full response time ≤ 5ms


● 30A, 50A, 75A,100A or 150A


● RS485(Modbus-RTU)or Ethernet(Modbus-TCP)


● Frozen data


● 2-51st Harmonics

  • APF.pdf APF.pdf
  • Description
  • Technical Parameter

Characteristics

  • Communication: RS485(Modbus-RTU)or Ethernet(Modbus-TCP) Standard or customized
  • HMI: 4.3/7.0 inch LCD display Grid Voltage, Load Current, Device Current and other energy consumption
  • Rated U, Frequency and Module Capacity: 380V±15%, 50Hz±2%, 30A,50A,75A, 100A or 150A

Function

1)Flexible compensation method:Compensate for harmonics only, compensate for reactive power only, compensate for both harmonics and reactive power,could compensate for 2th-25th harmonics or compensate for specific harmonics;

2)Ability of managing three-phase imbalance;

3)Linear compensation,Response time ≤ 5ms;

4)Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate;

5)Adopt imported IGBT which has high power density and high reliability;

6)Using DSP digital control system for high speed detection and calculation;

7)With remote communication interface, real-time monitoring through PC;

8)Standard modular design which reduces lead times and increases reliability and maintainability.

Dimension(L*W*H)

450*622*201mm

Response time

Full response time≤5ms,Instantaneous response time≤100μs

Total harmonic compensation rate

≥ 97%,3th/5th/7th/9th independent compensation rate ≥ 98%

Self-loss

≤2%

Efficiency

≥98%

Switching frequency

20KHz

Appearance

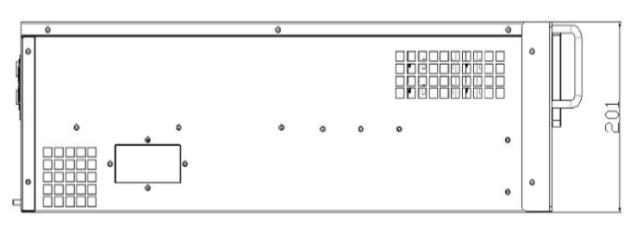

Dimension

Interface

Schematic

Wiring

Typical Connection

Recommended Products

APM800
ANSVG
APM801

Rated voltage

380V ±10%

Rated frequency

50Hz ±2%

Self-loss

2.5%

Efficiency

98%

Total harmonic compensation rate

≥ 97%

Response time

Full response time≤5msInstantaneous response time≤100μs

Switching frequency

20kHz

Protection level

IP20

Noise

60dB

Function setting

Compensate for harmonics only, compensate for reactive power only, compensate for both harmonics and reactive power

Compensation method

Linear compensation

The frequency of harmonic compensation

2th-51thcompensate for 2th-31th harmonics or compensate for specific harmonics

Wiring method

Three-phase three-wire,Three-phase four-wire

Communication interface

RS485EthernetCommunication function optional

Module capacity

30A50A75A100AThe same models could be directly connected in parallel

Cooling method

Forced air cooling
