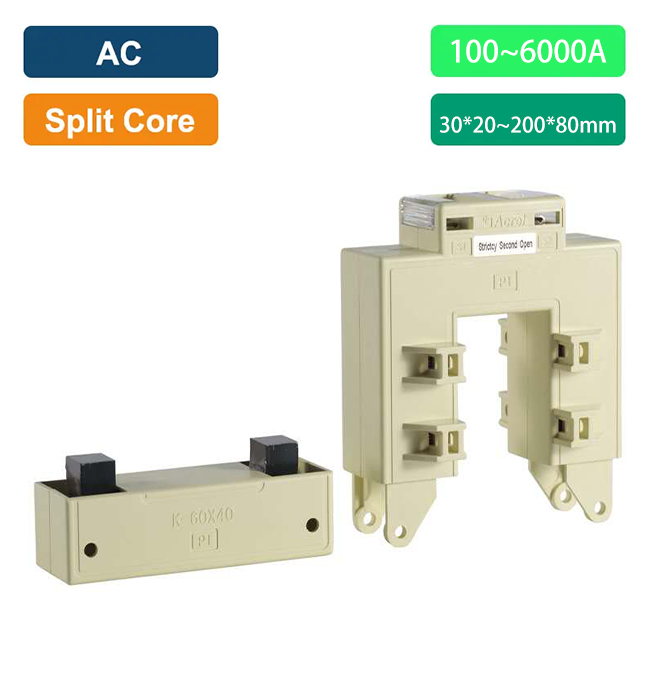

● Split core current transformer
● Easy to install without power off
● Suitable for electricity renovation project
Standards
-
CT.pdf
-
CE of CTs.pdf
|
Standards |
IEC/EN61869-1, IEC/EN61869-2 |
|
Security factor |
FS＜5 |
|
Maximum system voltage |
720V AC |
|
Test voltage |
3kV AC(1min) |
|
Rated frequency |
50/60Hz |
|
Rated short-time thermal current |
Ith=40~60In |
|
Rated dynamic current |
Idyn=2.5Ith |
|
Rated secondary current |
X/5A (X/1A upon request) |
|
Rated primary current |
6000A |
|
Continuous overload |
120%In |
|
Protection leve |
IP30 |
|
Casing |
Non-flammable, polycarbonate self-extinguishing ABS |
|
Operating temperature |
‘-25℃-+50℃ |
|
Storage temperature |
’-40℃-+80℃ |
|
Humidity (no condensation) |
≤90%RH |
