Acrel AMC16-DETT Multi-Circuits DC Energy Meter for Mobile Base & Tower Station
Acrel AMC16-DETT Multi-Circuits DC Energy Meter for Mobile Base & Tower Station
●Monitoring: Up to 6 circuits [DC Metering]
●Rated Voltage: -48Vdc
●Rated Current: 5Vdc (via -A5Vdc hall sensor)●Communicaiton: RS485 Interface, MODBUS-RTU Protocol
●Auxiliary Power Supply:-40~-60Vdc
●Power Output: 1 set of+12V/100mA,-12V150mA poweroutput serving as power supply of paired Hall Sensorsr
●Certificate&Standard:lEC;CE
-
AMC16-DETT manual.pdf
Base station DC energy meter AMC16-DETT is specially designed for base stations. The meter could measure 6 circuits DC energy, and provide the power supply for the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software.It also has the functions of telemetering,teleindication,teleadjusting, metering at real time, energy quality abnormal alarm, data storage and processing, data interaction. This meter can measure DC power consumption of three operators, providing detail datas for base station.
Characteristic
-
CommunicationRS485 Port, Modbus-RTU, 9600 Baud Rate
-
Multi Circuit Metering8 DC circuit monitoring, -48VDC Voltage input, 5VDC hall sensor input
-
Alarm FunctionUnder power failure, over/under current, over/under voltage and phase voltage loss.
-
Other functions±12VDC output to 8-pair hall sensors' auxiliary power supply, HMI screen is selectable.
Function
Wired Communications
● 1-way RS485 Interface
● MODBUS-RTU Protocol
● Baud Rate: 9600 default [optional 1200, 2400, 4800]
● Wiring Cable Recommend: RVSP 2x1.5²mm
Multi-circuit Metering
● Up to 6-circuit DC circuit monitoring
● Rated Voltage [DC]: -48Vdc
● Rated Current [DC]: 5Vdc [via hall sensor]
● 1 extra Utility Voltage Monitoring [via -/5Vdc transducer]
Extra Power Output
● Applicatrion: ±12Vdc Power Output for 6 paired Hall Sensors
● Output Specs: +12V/100mA, -12V/50mA
Appearance
Dimension
Wiring
Application in base station

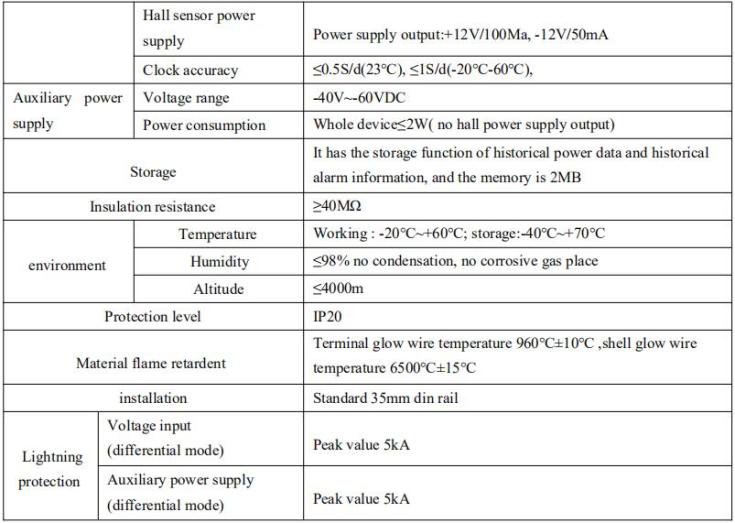

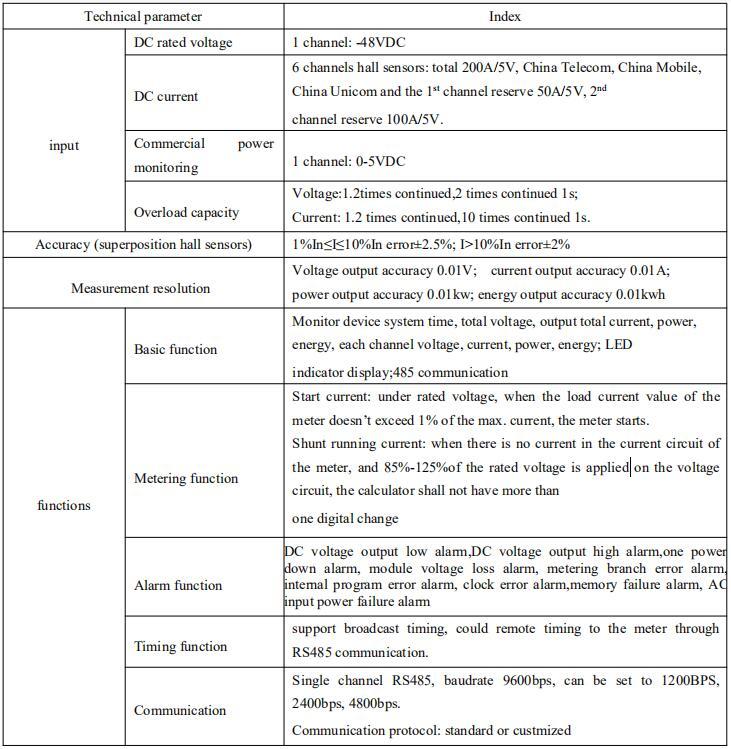

Technical Parameters
